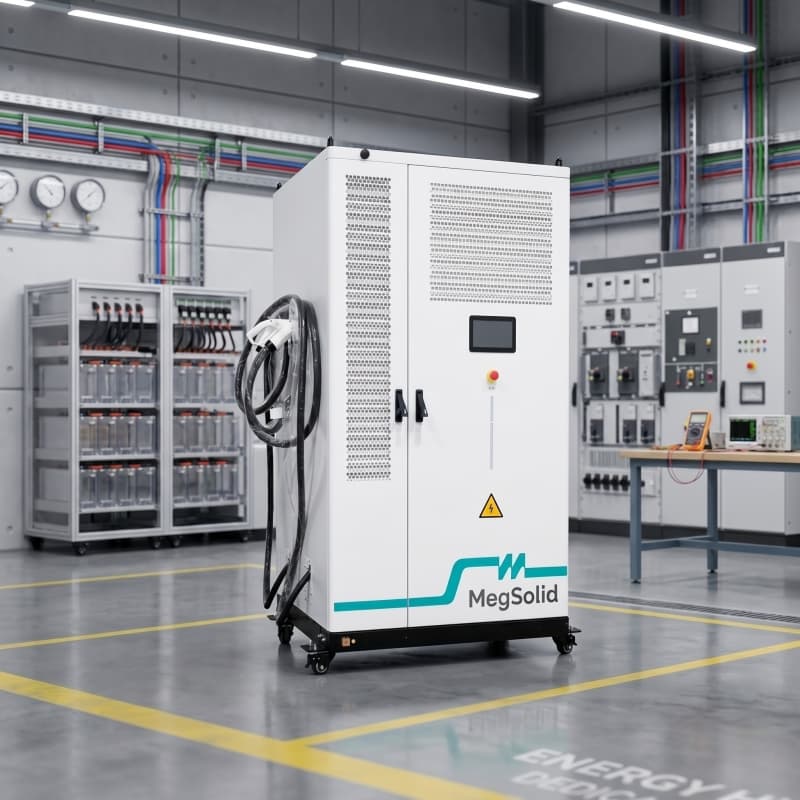

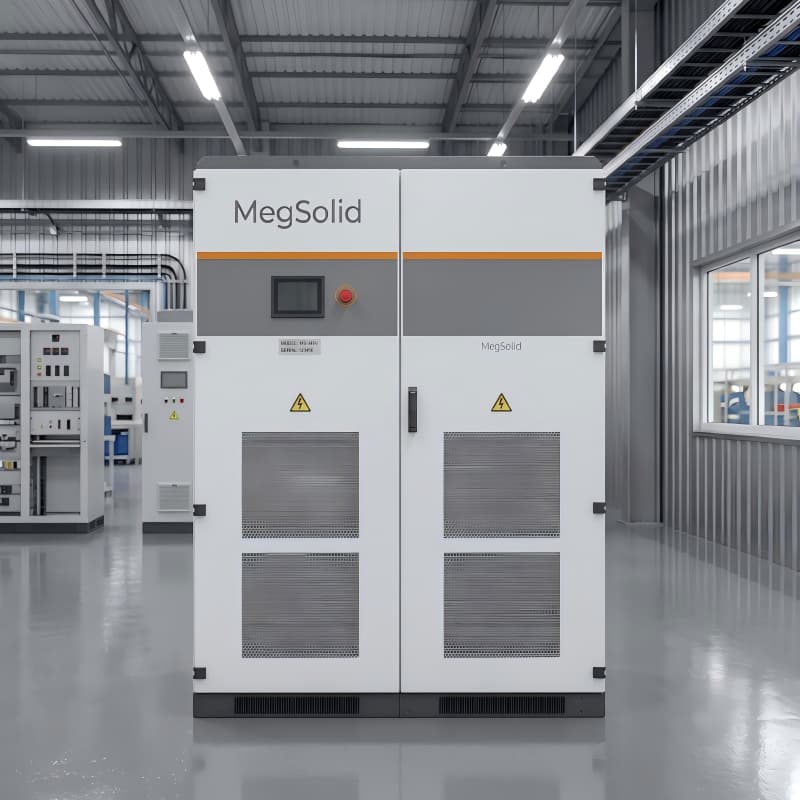

The MegSolid MEGA0030TS–MEGA0500TS energy storage PCS series provides rated output options from 30kW to 500kW for commercial, industrial and microgrid applications. Its built-in isolation transformer, wide battery voltage range and adjustable active and reactive power support flexible system integration.
The series supports on-grid charging and discharging, off-grid independent operation, automatic on-grid/off-grid switching and cold start. With up to 97.5% maximum efficiency, forced-air cooling, RS485, CAN and TCP/IP communication, it provides reliable bidirectional power conversion for demanding energy storage projects.
400
Rated voltage(V)
320~460
Voltage range(V)
<3%
THDi
Display
LCD touch-screen
BMS communication
RS485, CAN
EMS communication
RS485, TCP/IP
Certificates
DC(battery) and AC(on-grid)
Our Core Values
DC(battery) and AC(on-grid)
Technical specification
MEGA0030TS | MEGA0050TS | MEGA0100TS | MEGA0150TS | MEGA0250TS | MEGA0500TS
Voltage range (V)
250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850
Max. Current (A)
137 | 178 | 270 | 405 | 673 | 1,128
Max output power(kVA)
33 | 55 | 110 | 165 | 275 | 550
Rated output power (kW)
30 | 50 | 100 | 150 | 250 | 500
Rated current(A)
43 | 72 | 144 | 216 | 361 | 722
Max. output current(A)
48 | 80 | 159 | 238 | 397 | 794
Rated frequency (Hz)
50/60
Frequency range (Hz
45~55/55~65
Power factor
1lagging-1leading（Settable）
AC(off grid)
AC connection
3W+N+PE
Rated voltage(V)
400
THDu
＜1% Linear ＜5% Nonlinear
Rated frequency (Hz
50/60
Overload capacity
110% long-term
On/ Off grid switching
Automatic
Ingress protection
IP21
General data
Max.efficiency
96.3% | 96.5% | 97.1% | 97.1% | 97.3% | 97.5%
Noise emission(dB)
<70
Operating temperature (℃
-30～ 55
Cooling
Forced air
Relative humidity
0 ~95% non-condensing
Operation altitude (m)
5,000m(>3,000 Derating)
Dimension W*D*H (mm)
800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 1,200*800*2,050 | 1,600*1,050*2,050
Weight(kg)
605 | 676 | 936 | 1,057 | 1,582 | 2,665
Transformer ratio
100/400 | 200/400 | 270/400 | 270/400 | 270/400 | 315/400
Self-consumption (W)
<100
